YY-1033 Smart Soil pH & Temperature Meter – Technical Specifications & Features

• Device Model: YY-1033

• Primary Use: Soil analysis for gardening, agriculture, floriculture, landscaping, scientific research, education

• pH Range: 0.0–14.0

• pH Resolution: 0.1

• pH Accuracy: ±0.1

• Temperature Range: 0.1°C–60°C / 32°F–140°F

• Temperature Resolution: 0.1°C / 0.1°F

• Temperature Accuracy: ±0.5°C

• Calibration Points: 4.00, 6.86, 9.18, 7.00, 10.01

• Dual Calibration Modes: Asia Standard, EU Standard

• Calibration Type: Manual with real-time calibration record display

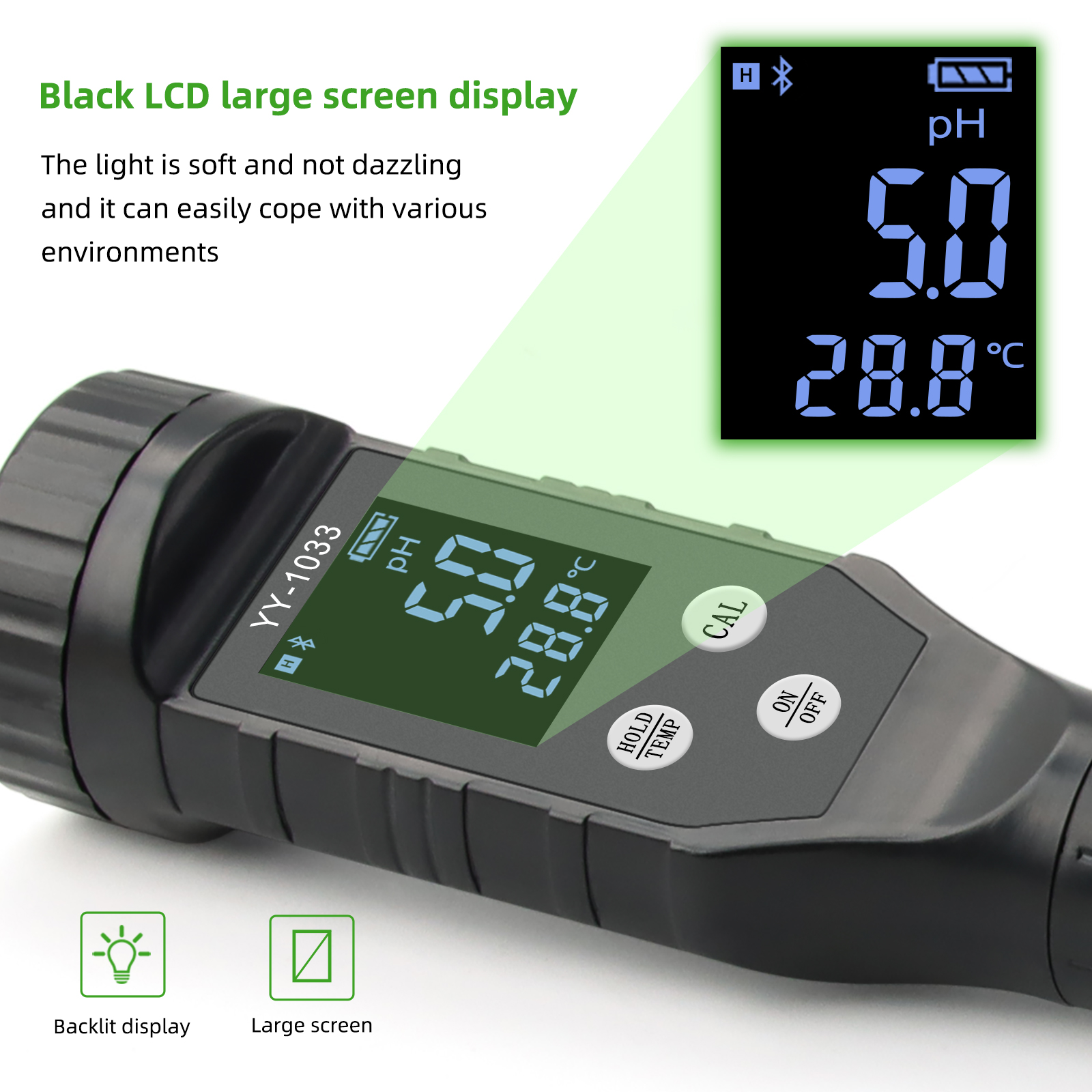

• Display: Large LCD with adjustable backlight for night/low light

• Memory: 1000 readings stored

• Data Export: Excel, share, print via Bluetooth app

• Bluetooth Version: 5.2, iOS/Android compatible

• Mobile App Functions: Live monitoring, calibration record, value lock, share & backup

• Backlight Control: Manual/app-based on/off

• Power Supply: 4 × LR44 (1.5V) batteries, low battery alert

• Battery Life: 50 days (normal); 2 years (standby)

• Probe: Interchangeable puncture electrode with protection cap

• Waterproofing: IP67 certified (waterproof, dustproof)

• ATC: Automatic Temperature Compensation for all environments

• Storage Solution: 1M KCL solution for electrode

• Operational Environment: 0.1°C–80°C, ≤90% RH

• Standby Duration: Up to 2 years

• Buttons: ON/OFF, HOLD/TEMP, CAL, remote control via app

• Dual Parameter Display: Shows pH & temperature simultaneously

• Stable Value Lock: Hold function ensures stable, accurate readings

• pH Color Bar: Visual scale for quick acid/alkaline check

• Data Visualization: Real-time graphs in app, historical data log

• Cloud Sync: App supports data cloud backup

• Data Sharing: One-click sharing (email/social/print)

• Electrode Cover: Metal protection for probe durability

• Non-Destructive Test: No harm to plants or soil

• App Languages: English/Chinese, more upon request

• Alert Function: Calibration reminders, battery alerts

• Scenario Support: Garden, orchard, nursery, greenhouse, hydroponics, classroom

• Ergonomics: Portable, hand-held, 120g lightweight

• Housing: Industrial ABS, corrosion-resistant

• Certifications: CE, FCC, RoHS

• Warranty: 1 year, factory pre-calibrated, technical support

• Accessories: Storage cap, calibration powder, user manual

• Color: Black

• OEM Options: Available for large orders

Scientific Data & Value

Soil pH and temperature directly determine plant nutrient uptake. Studies (2023) confirm that precise pH control can improve plant growth rate by 25% and overall crop yield by at least 20%. ATC ensures accuracy even in changing field conditions. With Bluetooth and app recording, you never lose critical data and can easily optimize irrigation, fertilization, and crop health based on real numbers.
